Details

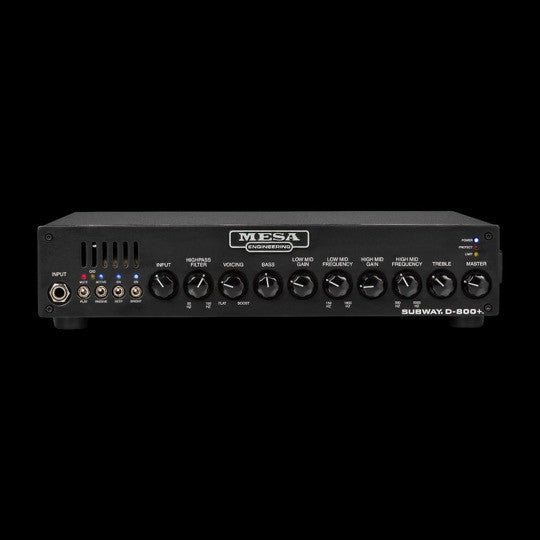

Upgraded Features For More Tonal Control And An Interface For Outboard Signal Processing

The SUBWAY® D-800+™ addresses the player who wants enhanced frequency control and an interface for outboard signal processing. The upscale D-800+ preamp features expand upon the acclaimed D-800 by including the following:

• Comprehensive EQ section with Semi-Parametric sweep-able LOW and HIGH MID Bands.

• Addition of a BRIGHT switch.

• Adjustable HIGH-PASS Filter with control from 30Hz to 150 Hz.

• Series Effects Loop, and on the Rear Panel.

• Tuner Output.

• 1/4” MUTE footswitch jack.

FEATURES

• Made in Petaluma, California with the World’s Finest Materials.

• Class D Power with 8/4 or 2 Ohm Impedance Switch for optimum Power to Load Performance.

• 800 Watts @ 4 or 2 Ohms (400 @ 8).

• Active/Passive Input Switch.

• Play/Mute Switch.

• Preamplifier features:

• Input Gain with Clip Indicator (O/D LED).

• Variable High-Pass Filter (30Hz – 150Hz).

• Variable Voicing (Flat to Vintage Scoop).

• Fully Active 4-Band EQ (+/- 12dB of Bass, Low-Mid, High-Mid, Treble).

• Sweepable (variable) Low-Mid (150Hz-1800Hz) & High-Mid (300Hz-5000Hz) Frequency Controls.

• Deep Switch (for enhanced low-end).

• Bright Switch (for enhanced top-end).

• Master Volume.

• Balanced XLR Line Out with Pre/Post, Line/Mic & Ground Lift Switches.

• Series FX Loop.

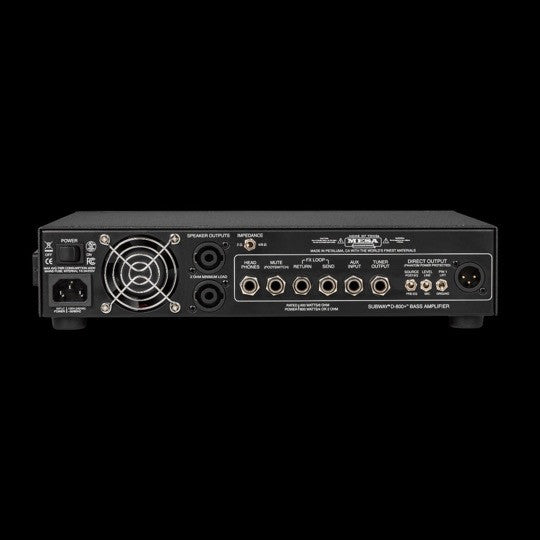

• Tuner Output (back panel).

• Mute Footswitch Jack (footswitch sold separately).

• Headphone Output.

• Auxiliary Input.

• Protection & Limit LED Indicators.

• 2 Speakon Speaker Output Jacks.

• Fan Cooled.

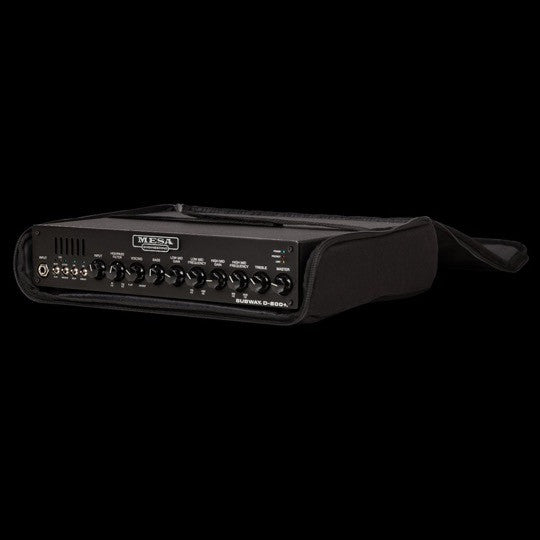

• Gig Bag w/Strap.

FORMAT

• Weight: 6.3 LBS (2.9 KG).

• Dimensions: 2.625” (66.7MM) H x 13.25” (336.6MM) W x 10.15” (257.8MM) D.
