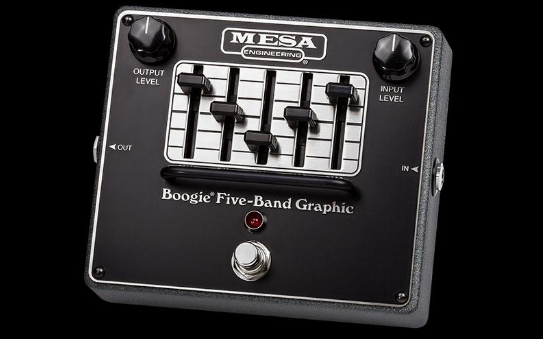

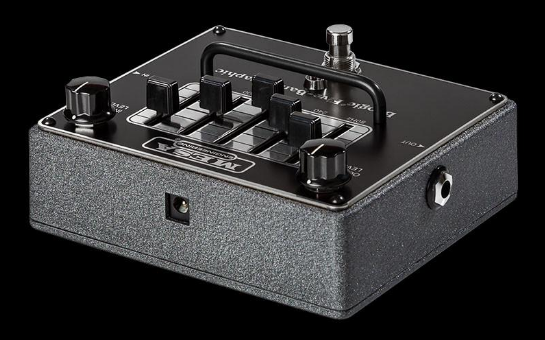

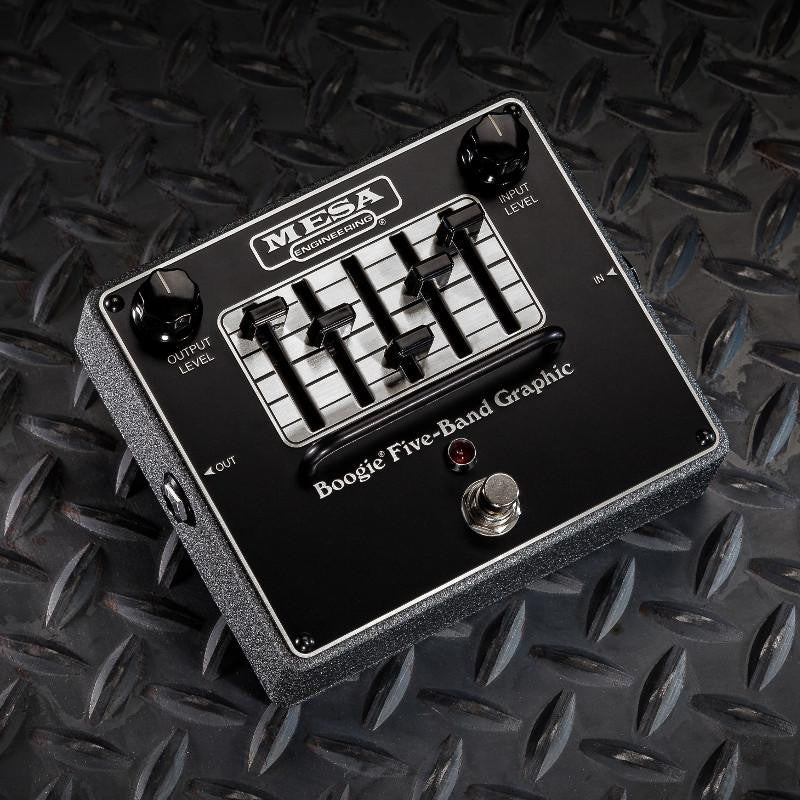

Five-Band Graphic EQ Pedal
MesaBoogie
Details Our legendary Boogie® Five-Band Graphic EQ is now available in pedal form! For over four decades, the Boogie Five-Band Graphic EQ, found in our high-end amplifiers, has been at the heart of chart topping guitar sounds. It is hard to ignore the impact the now classic “V-Curve” has had...
Details
Our legendary Boogie® Five-Band Graphic EQ is now available in pedal form! For over four decades, the Boogie Five-Band Graphic EQ, found in our high-end amplifiers, has been at the heart of chart topping guitar sounds. It is hard to ignore the impact the now classic “V-Curve” has had on modern guitar sounds and popular music.
You can now incorporate this powerful shaping tool into any setup, including non-guitar applications. The pedal can be position at the Front End or within an Effects Loop to create your own unique signature tones. The long-throw Sliders are used to achieve maximum resolution and finite adjustment. Both Input and Output Level Controls are provided to ensure optimum matching of both your Source and Destination, regardless of your application. When the foot switchable tone option is not deploy, the Hard Bypass Feature ensures your sound is pure and unaltered .
Features
- Designed and Handcrafted in Petaluma, California, USA.
- True Bypass On/Off Switching - No Tonal Loss when in Bypass Mode.
- Input Level Control with Unit Gain Detent, +6dB Boost or -40dB Cut.
- Output Level Control with Unit Gain Detent, +6dB Boost or -40dB Cut.
- Slider Controls with +/1 12dB boost or cut at 80Hz, 240Hz, 750Hz, 2.2kHz and 6.6kHz.
- On/Off Status LED.
- 9V Battery Powered or Externally Powered via Power Jack Input.
- Input and Output Jacks, with Nominal Input @ -20dB.
Weight and Dimensions
- 1.6 Lbs (725.7g) and 1.5 Lbs (680.4g), With and Without Battery Respecively.
- Height - 2.30" (58.4 mm).
- Width - 5.78" (146.8 mm).
- Depth - 4.76" (121 mm).
- Power Consumption of 0.225 Watts (9v @ 25mA).
- Input Impedance of 1M Ohm (500K Ohm Minimum).
- Output Impedance of 10K Ohm.
- External Power Supply MUST be 9Vdc with NEGATIVE CENTER Plug Polarity and a Jack Plug Size of 2.1mm x 5.5mm
