Details

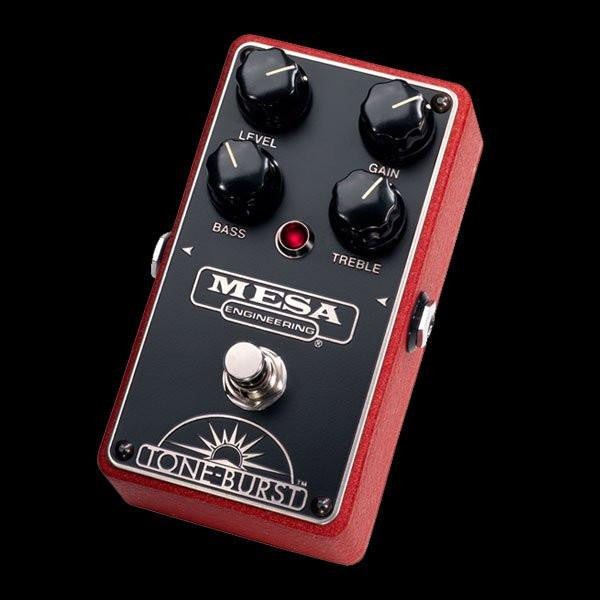

The TONE-BURST™ Boost/Overdrive offers a virtually transparent gain range usually associated with “clean” boost pedals. However, the TONE-BURST has enough gain to boost your guitar to the threshold of clip and slightly beyond, making it far more useful for a variety of applications. It’s incredibly powerful for adding boost, drive and/or EQ to any guitar and amp combination. Whether using it as a utility to boost the output of single coils to match a humbucker or as a subtle overdrive when a standard overdrive may be too much, the TONE-BURST is an incredibly useful and expressive pedal that makes the best things sound even better!

Features

• Designed and Handcrafted in Petaluma, California, USA.
• True Bypass On/Off Switching - No Tonal Loss when in Bypass Mode.
• Gain Control to Dial in the Perfect Amount of Boost or Mild Overdrive.
• Master Level Control Provides Variable Range of Signal Boost up to +20dB.
• Bass or Treble Controls Provide +/- 12dB Boost or Cut.
• On/Off Status LED.
• 9V Battery Powered or Externally Powered via Power Jack Input.
• Input and Output Jacks, with Nominal Input @ -20dB.

Weight and Dimensions

• 0.802 Lbs (364g) and 0.702 Lbs (319g), With and Without Battery Respecively.
• Height - 2.28" (58 mm).
• Width - 2.87" (73 mm).
• Depth - 4.77" (122 mm).
• Power Consumption of 0.135 Watts (9v @ 15mA).
• Input Impedance of 2M Ohm (500K Ohm Minimum).
• Output Impedance of 10K Ohm.
• External Power Supply MUST be 9Vdc with NEGATIVE CENTER Plug Polarity and a Jack Plug Size of 2.1mm x 5.5mm
